A tile shower is only as good as what's behind it. We waterproof every custom shower with the Wedi system, then lay out the tile, niches, shelves, and benches so the details land exactly where they should.
We also tear out the old tile, drywall, and any previous waterproofing down to the studs and rebuild clean, building over old work is cheaper today and expensive later. And we partner with a local glass company for custom made shower glass with a fog resistant coating that stays clear.
Planning to stay for the long haul? See our curbless and aging in place showers.
Curbless showers in ColumbusInstallation Process

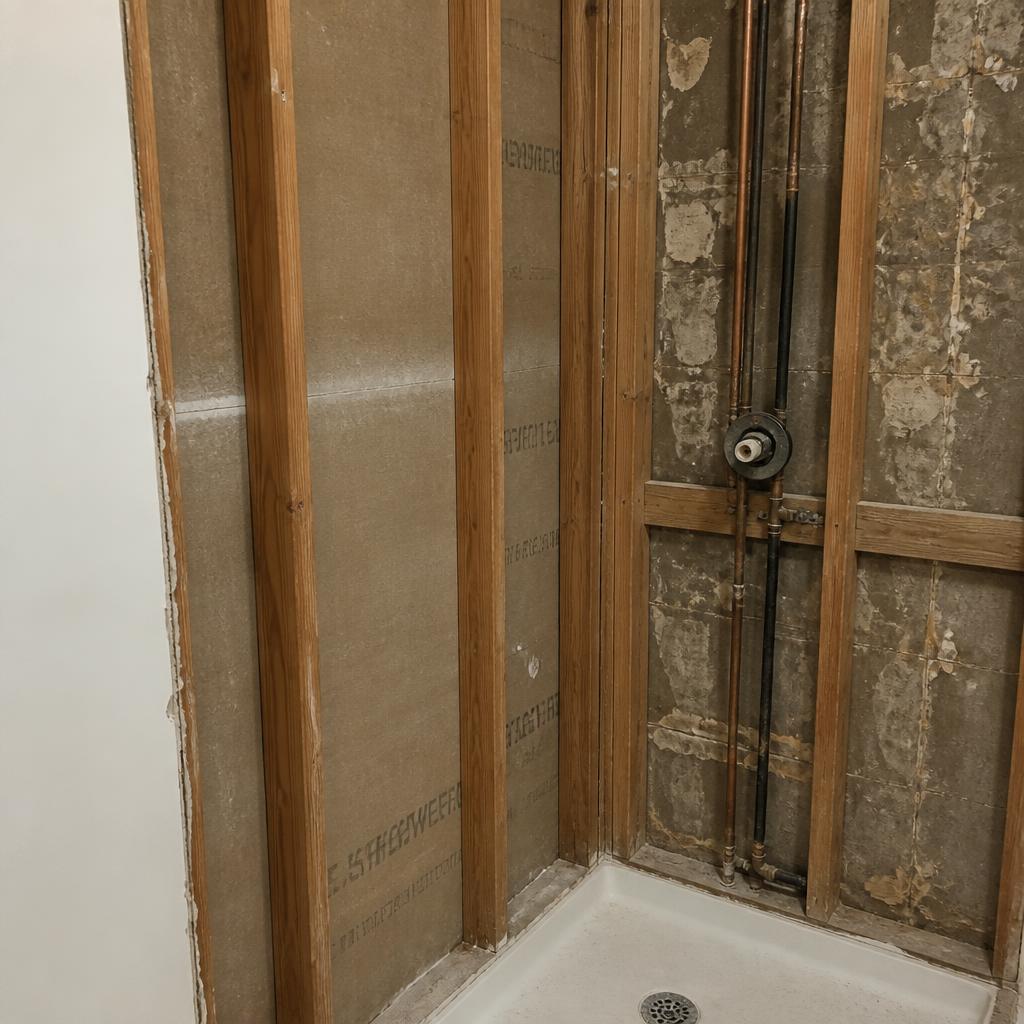

Tear out down to studs. We check framing plumb, blocking for niches and benches, and slope to drain before anything else goes in.
A properly sloped mud base or foam tray sends water to the drain, 1/4" per foot minimum. Bonded flange drain sits flush with the waterproofing layer.
Full Wedi system on walls, curb, and floor, waterproof foam panels with every seam sealed using Wedi Joint Sealant and pre formed corners. Optional 24 hour flood test before tile.
Story pole layout keeps grout lines centered on niches, benches, and controls. Large format wall tile back buttered and set with unmodified thinset per warranty.
Epoxy or high performance cement grout in wet areas. Natural stone gets a penetrating sealer. Silicone (never grout) in every change of plane.
Waterproofing
Cement board with a coat of paint on membrane is not enough. Every custom shower we build is waterproofed with the full Wedi system, bonded board, banded seams, pre formed corners, and bonded flange drains. Warranty compliant, and it lasts.
Custom Features
Framed and waterproofed into the wall, sized to your bottles, not a stock box. Slope the sill, miter the edges, and center the tile pattern for a clean recess.
Cut in stone or matching tile shelves add function in tight showers. Blocked and waterproofed behind, no adhesive only shelves that fail in a year.
Full width or floating benches, built with foam or framed and fully waterproofed. Curbless entries with linear drains available when the subfloor allows.
Detail Gallery
The details that make a shower last live behind the tile. Here's how each custom feature comes together.

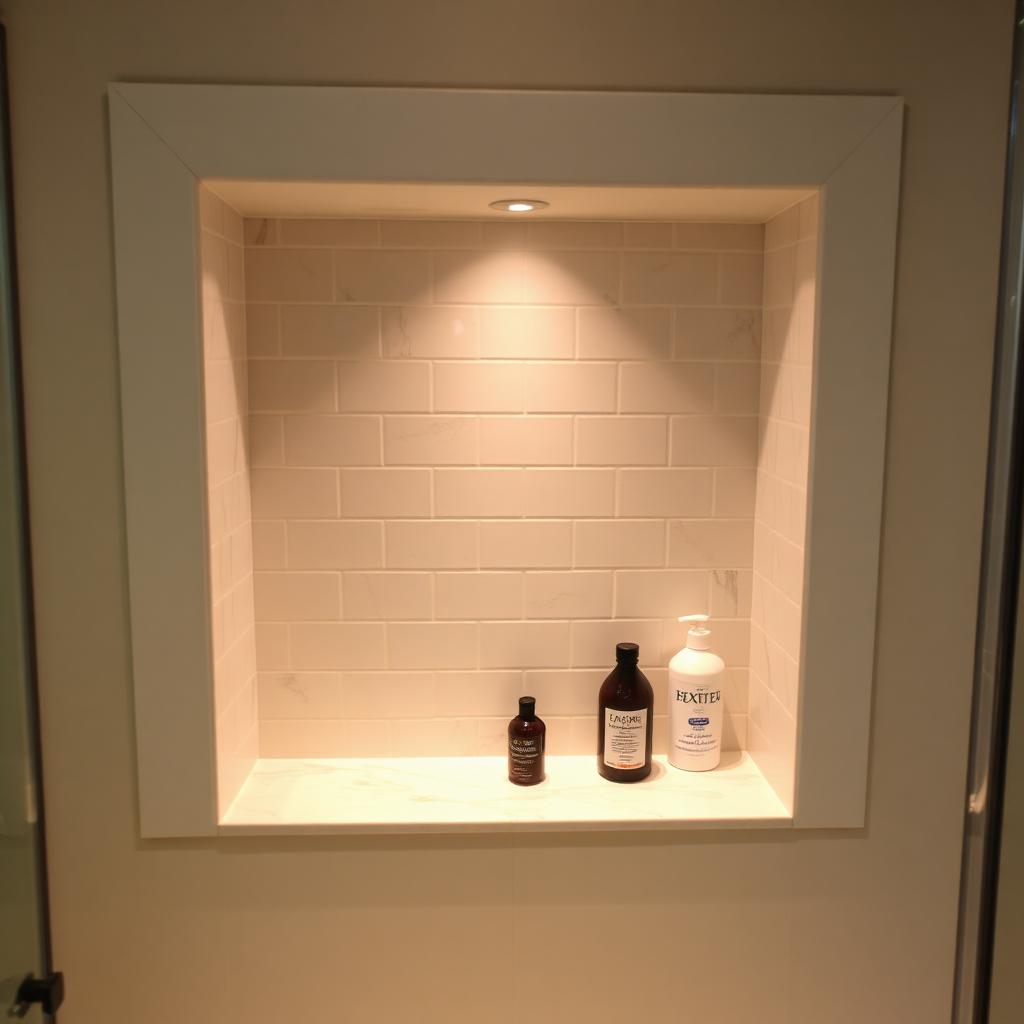

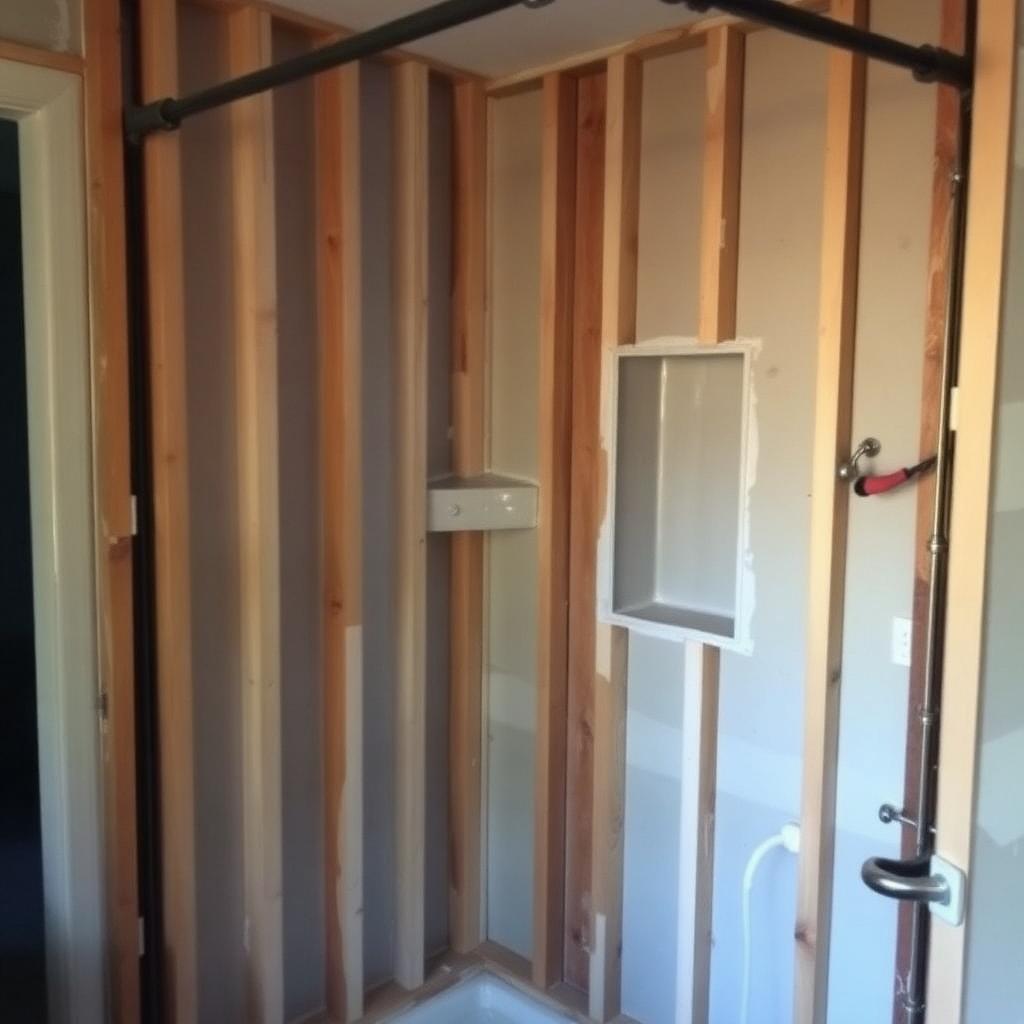

Framed into the wall between studs, waterproofed with the surrounding membrane, mitered marble edges and a sloped sill so water drains out instead of pooling.

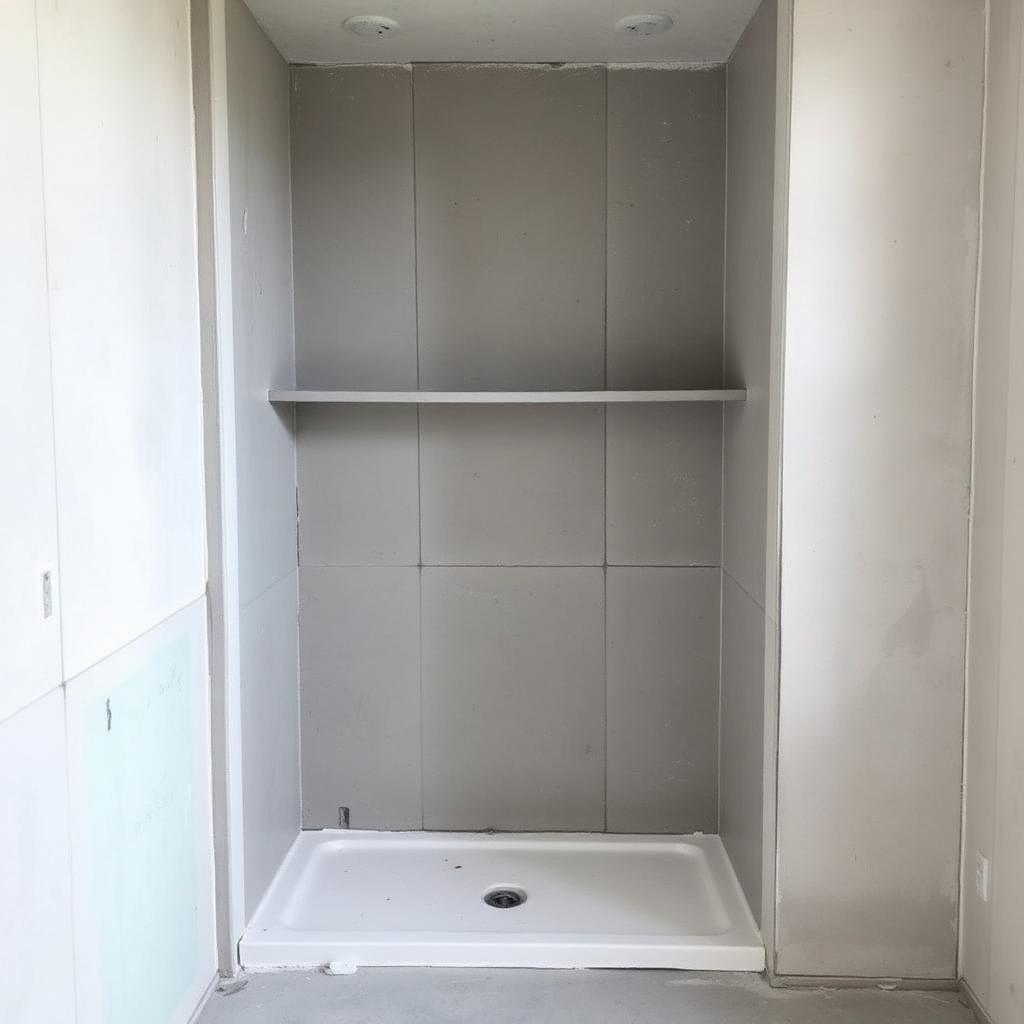

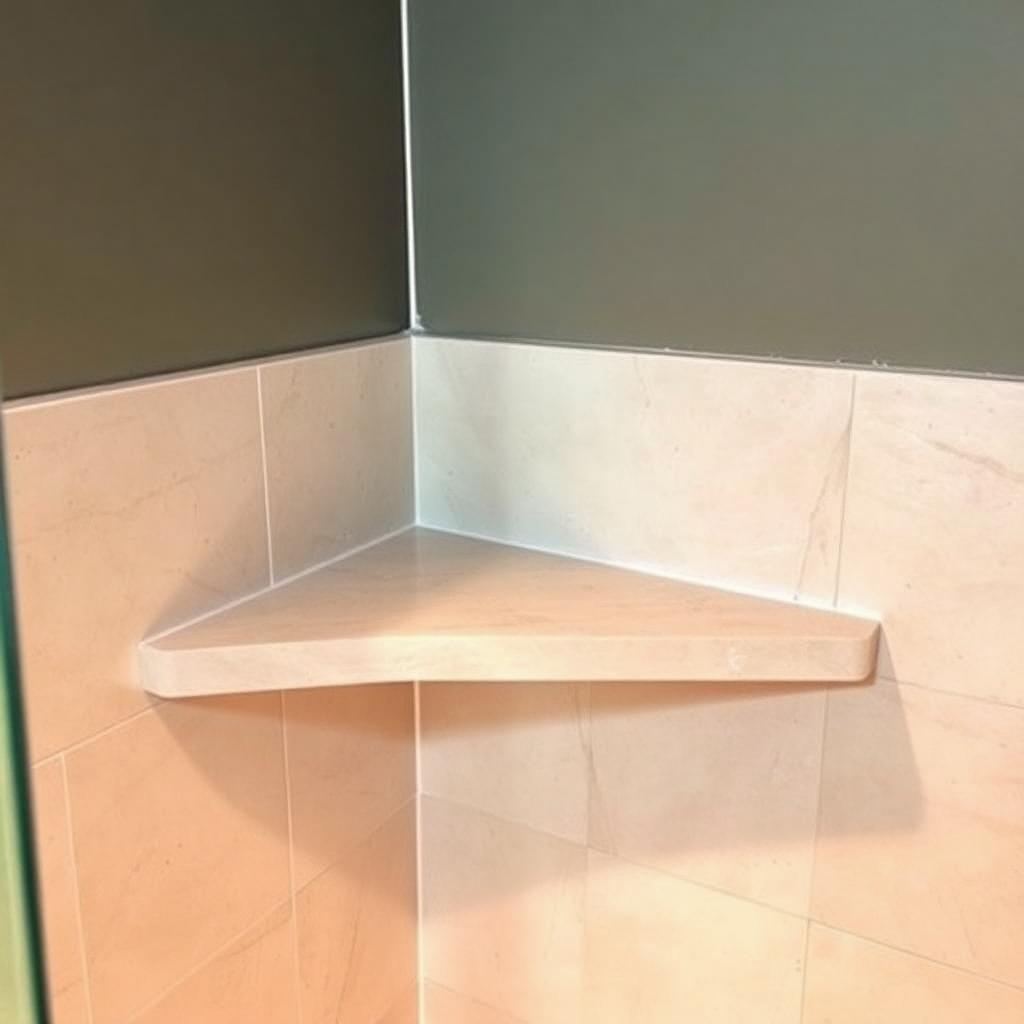

Stacked triangular corner shelves set into the wall tile at usable heights, bottles and razors off the floor, out of the spray, and easy to wipe down. Set with a slight slope so water sheds instead of pooling.

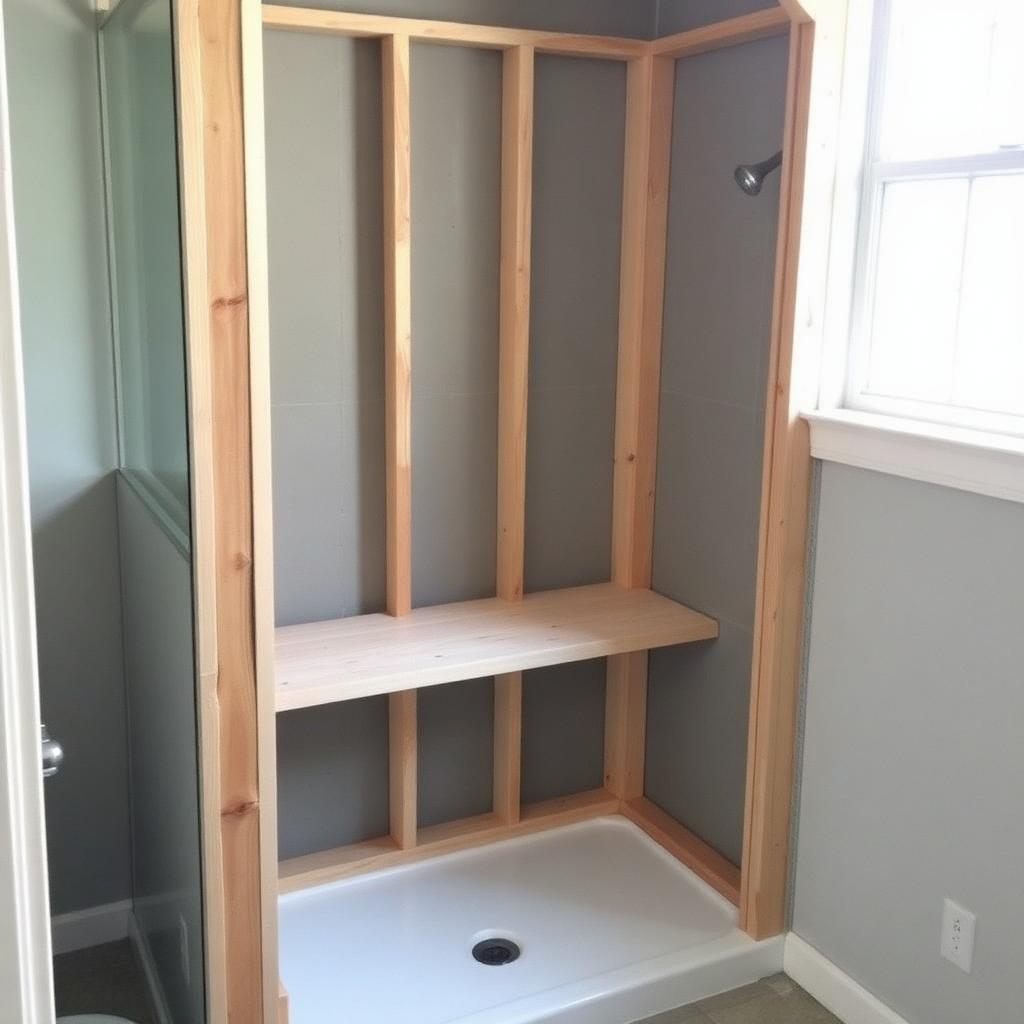

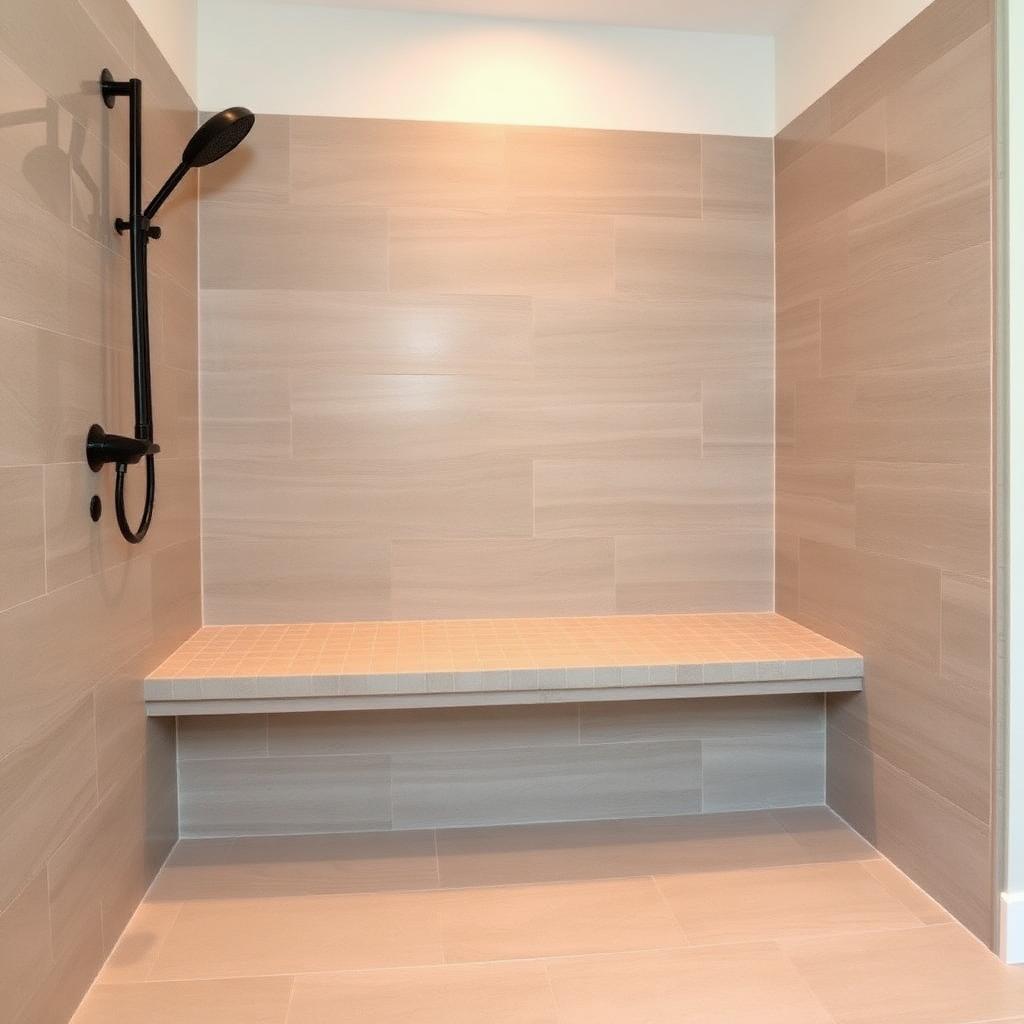

Framed and blocked into the wall, wrapped in the same waterproof membrane as the rest of the shower, then tile clad with a solid stone cap. Sized for comfortable seating and sloped so water sheds to the drain.

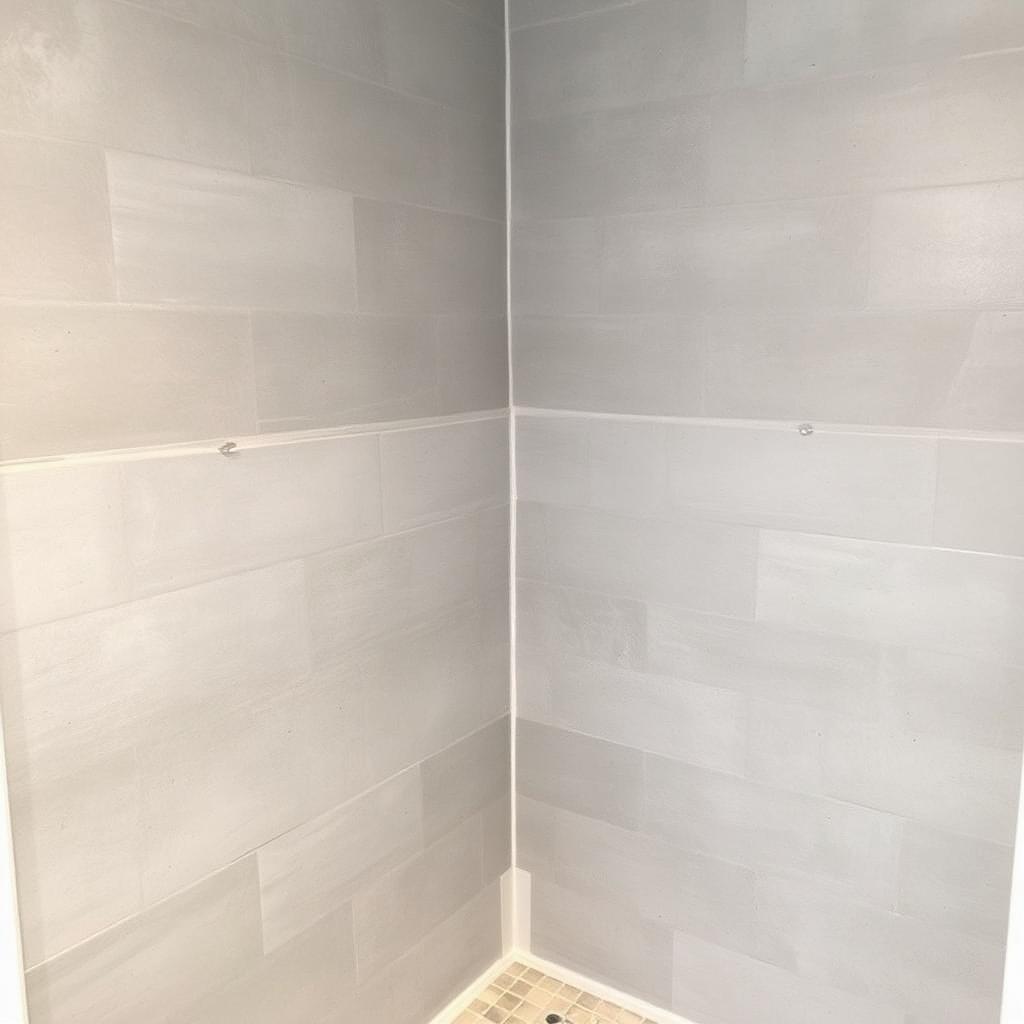

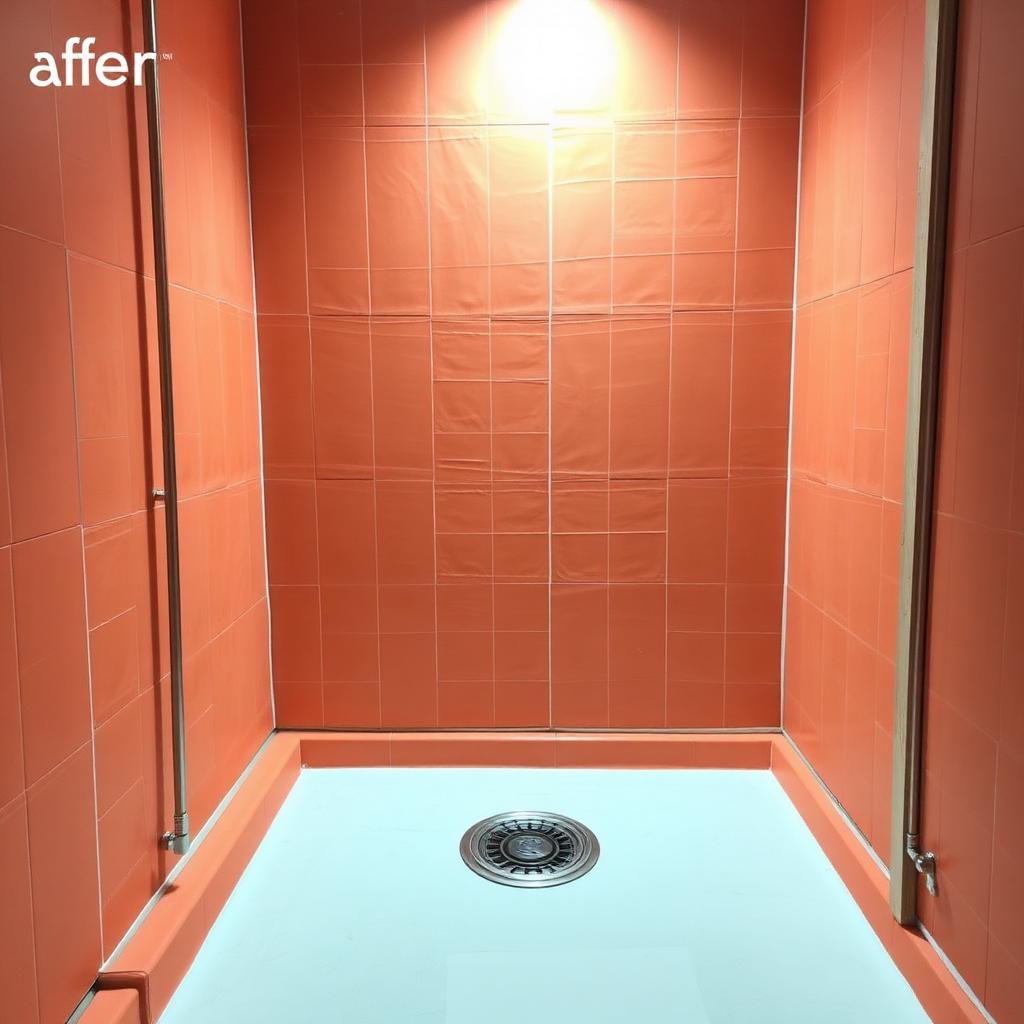

We build the shower shell out of GoBoard waterproof panels, then seal every seam, corner, fastener, and plumbing penetration with Wedi Joint Sealant before any tile goes up. The result is one continuous waterproof envelope, walls, curb, bench, and pan.
Accent walls, feature floors, and matching niches turn a shower into the focal point of the bathroom, a dramatic black marble look back wall with a black hex floor, or a river rock floor and niche paired with soft marble look walls.
Material Pairings
Bookmatched slabs or 12×24 tile. Sealed with a penetrating sealer at install and again yearly.
Filled and honed for a smooth, slip resistant surface. Warm tones that soften the whole bathroom.
Grout & Edging Guide
Grout and edge trim are the last decisions, but they make the biggest difference in how long the shower stays clean and how finished it looks.
We pick grout after the tile is chosen, not before. The decision depends on the tile material, joint width, how much water hits the surface, and how much maintenance you want.
Epoxy grout
Best for: Porcelain & ceramic showers, wet floors
Why: Essentially waterproof, stain proof, and never needs sealing. Best for showers that see daily use.
Urethane grout
Best for: Natural stone, large format tile, moderate joints
Why: Flexible, crack resistant, and easier to clean up than epoxy. A good middle ground for stone and textured tile.
High performance cement grout
Best for: Budget focused tile updates, narrow joints
Why: Economical and time tested, but must be sealed annually in a wet area. We only use polymer modified formulas in showers.
The right edge profile protects the tile, finishes the cut, and ties in with fixtures. We match the profile shape to the tile thickness and the visual style of the shower.
Schluter Jolly
Best for: Thin wall tile, exposed side edges
Why: L shaped profile with a clean reveal. The go to for modern porcelain and ceramic wall installations.
Schluter Quadec
Best for: Square edged finishes, outside corners
Why: Creates a crisp, square edge on tile tops and curbs. Looks sharp with large format and rectified tile.
Schluter Rondec
Best for: Curbs, benches, bullnose alternatives
Why: Rounded edge that is comfortable and safe underfoot. Great for shower curbs and bench noses.
Photo Gallery

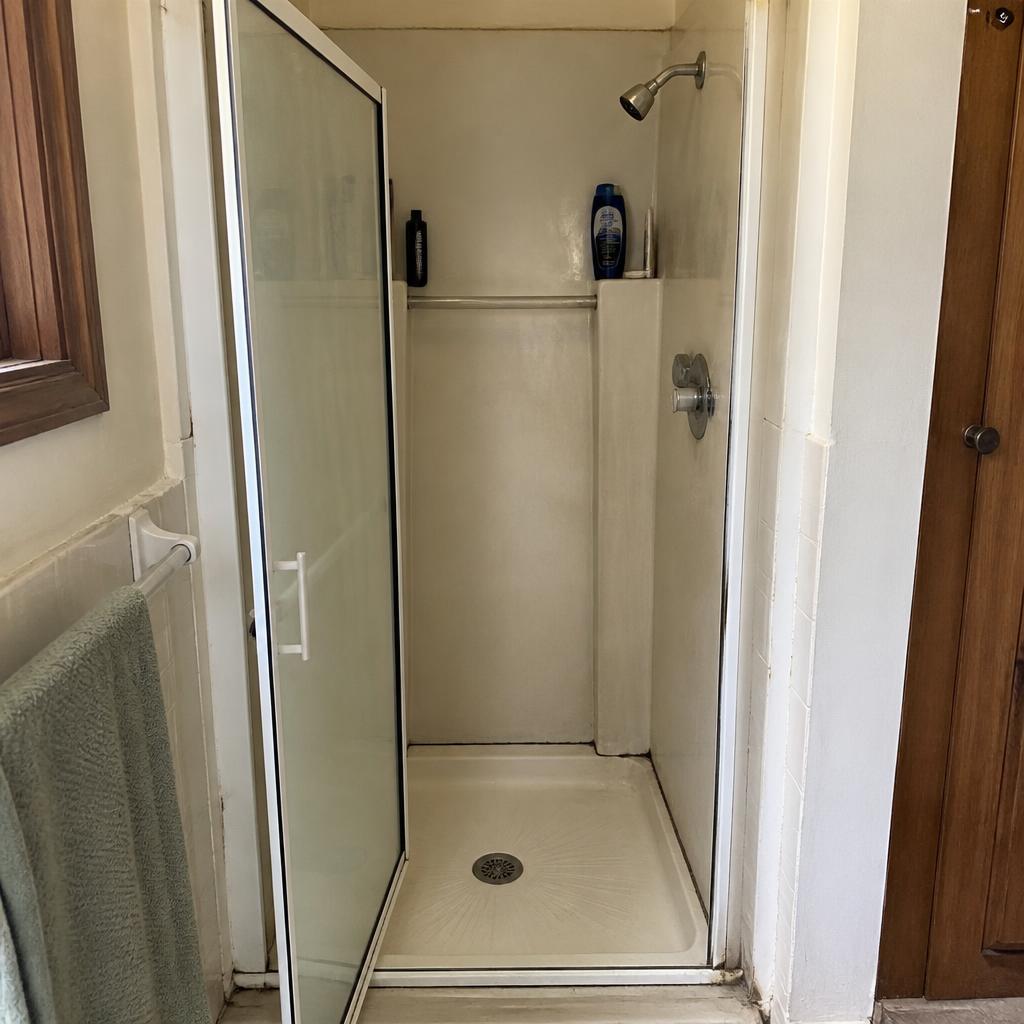

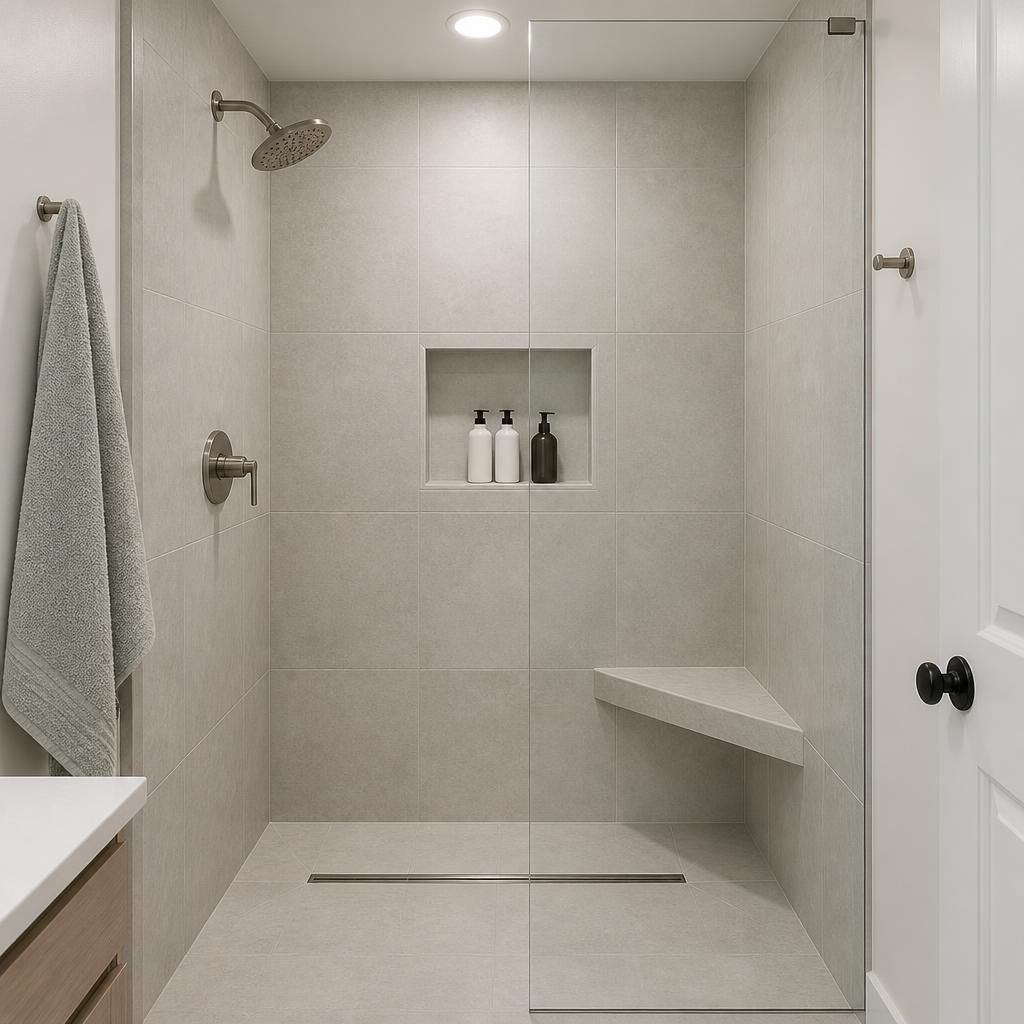

Removed a dated fiberglass insert and built a walk in shower with large format porcelain, a custom niche, and a marble basket weaved floor tile.

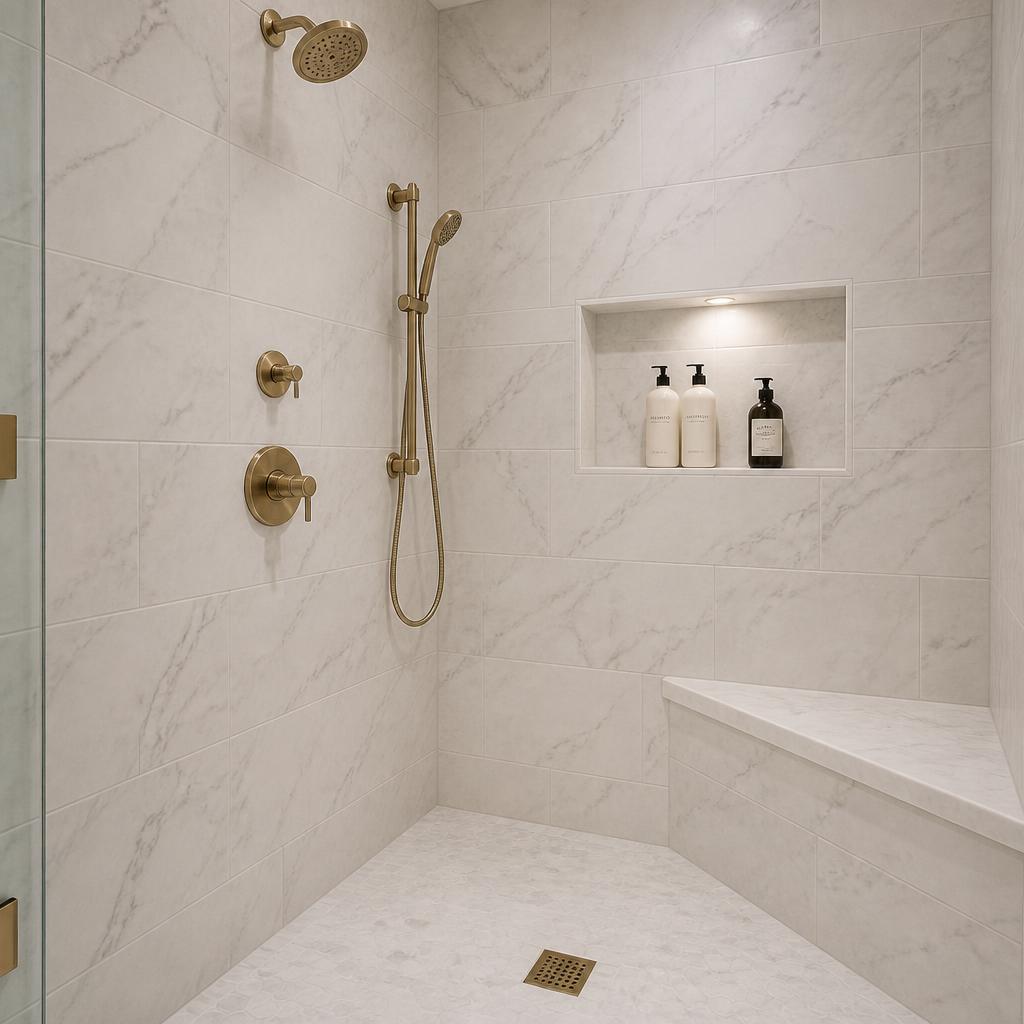

Removed the old shower tile and waterproofing, then installed a custom walk in tile shower with a tiled bench and a Wedi linear drain system. Our scope was the shower tile work.
